Dynamic And Accurate Image Feature Extraction for Camera calibration

Master Thesis at ifp - Zhan Kun

Zhan Kun

Dynamic And Accurate Image Feature Extraction for Camera calibration

Duration of the Thesis: 6 months
Completion: January 2018
Supervisors: Matthias Küver & Mehrdad Nekouei Shahraki (Robert Bosch GmbH)
Examiner: Prof. Dr.-Ing. Norbert Haala




Introduction

The increasing demand for using different kinds of cameras in Advanced Driver Assistance Systems calls for accurate and efficient calibration before put into use. In this master thesis, maker extraction algorithm is mainly focused for calibration with a 3D spiral arranged test field.

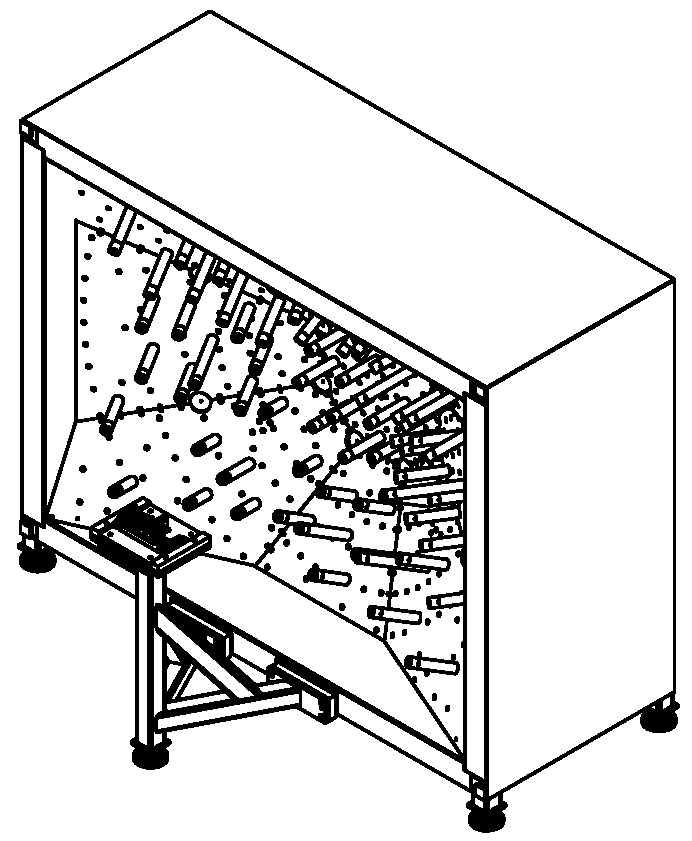

3D test field
Figure 1 3D test field (Robert Bosch GmbH)

The markers of the test field projected in the image plane have different distortion. Therefore marker extraction, which realized by template matching in the work, needs specific created masks making use of available 3D information of the test field and also the initial intrinsic/extrinsic parameters.

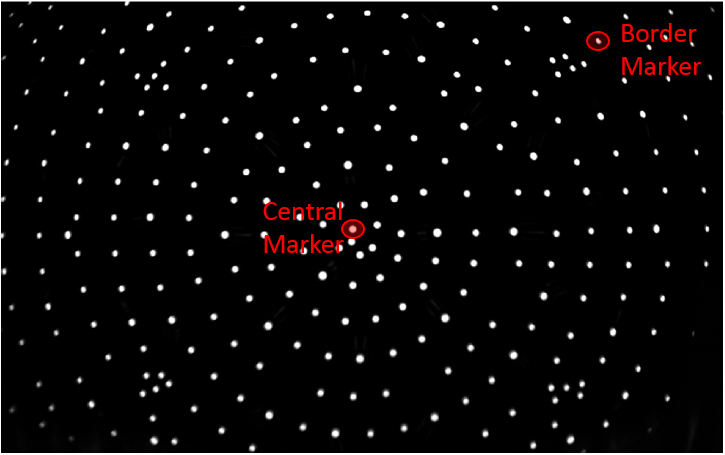

Overview of the sample image
Figure 2 Overview of the sample image

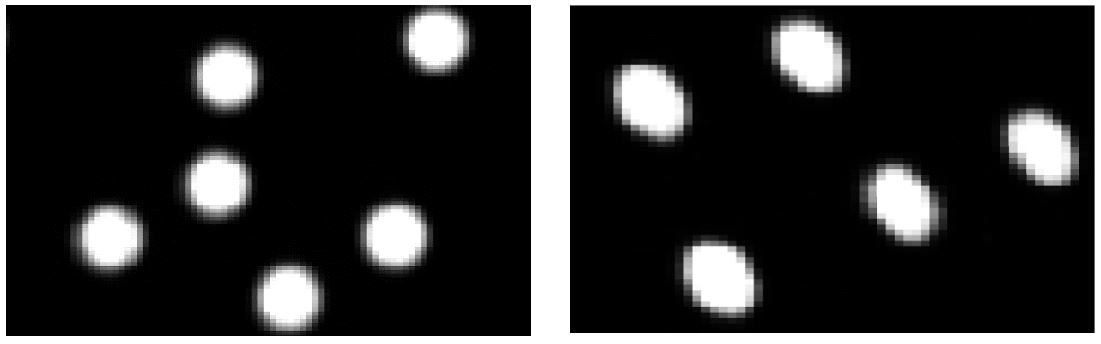

Central and border markers
Figure 3 Central and border markers

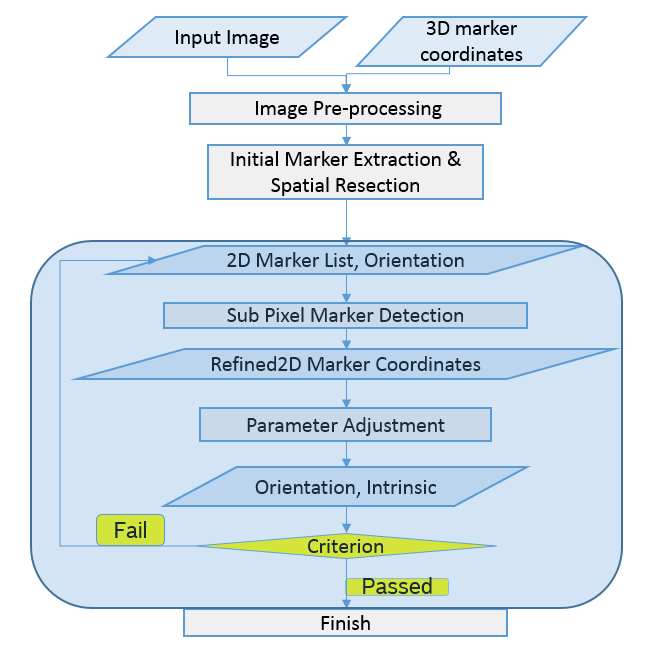

The workflow of whole calibration process applying the masks are displayed as the workflow chart,

Figure 4 Workflow of the calibration process

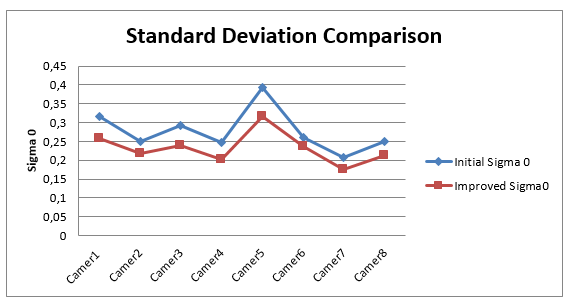

Finally the result says that the algorithm gives improvement but limited.

Figure 5 Result of camera calibration

For the outlook of the thesis, it can be concluded that except marker extraction algorithm, other factors like local lens distortion, camera model modelling power as well as image quality should be further considered.
